The basic function of Intelligent Tensioning pump is real-time monitoring of hydraulic oil pressure, jack expansion displacement changes and other parameters when the jack is working. Intelligent Tensioning pump determine whether the tension value of both ends of the jack is consistent.
| Model | SFST-2 | SFST-4 | SFST-6 | SFST-8 |
| Oil pump output | 2L/min | |||
| Fuel tank capacity | 70L | |||
| Motor Power | 3Kw | |||
| Maximum output pressure | 70Mpa | |||
| Displacement measurement accuracy | 0.08%FS | |||
| Pressure measurement accuracy | 0.2% FS | |||
| Communication method | Wireless data terminal | |||
| Working voltage | 370V ~ 400V | |||
| Ambient temperature | -10`C ~ 40`C | |||
| Machine size (L*W*H) | 640mm * 460mm * 928mm | |||
| Terminal laptop | Lenovo laptop (with dedicated software) | |||

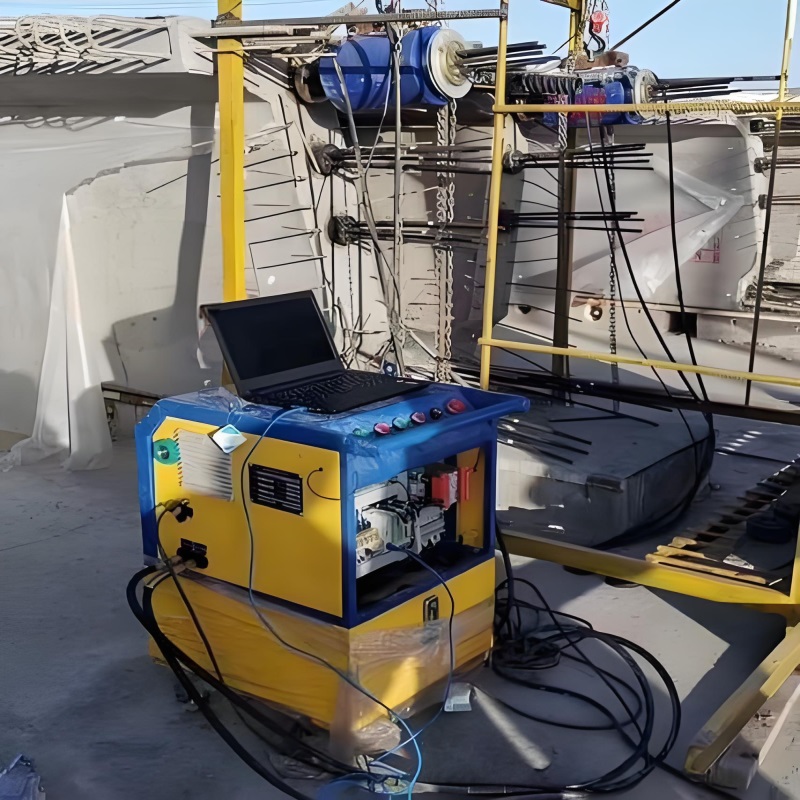

Intelligent Tensioning pump
1.Intelligent Tensioning pump truly realizes a number of synchronous and balanced tension construction technology.
2.Intelligent Tensioning pump adopts wireless acquisition and control, remote monitoring, easy to operate, and has high reliability.
